Applied Digital Data Systems, Inc. or 'ADDS' Regent 25 Data Terminal - 1979

May 10, 2024 Michael Thwaite

Data Terminals Photo Album

Links

https://terminals-wiki.org/wiki/index.php/ADDS_Regent_25 Terminals Wiki.

https://texelec.com/product/foam-capacitive-pads-keytronic/?highlight=foil New "Foam and Foil" Capacitive Pads for KeyTronic & BTC Keyboard Repair.

http://telcontar.net/KBK/Cherry/solid_state A rich & extensive repository of keyboard history and information.

Attached here are some photos taken during the restoration of the ADDS Regent 25 Data Terminal that might help catalogue some experiences for future reference.

Strip Down

I began by photographing the components in readiness for strip down and painting.

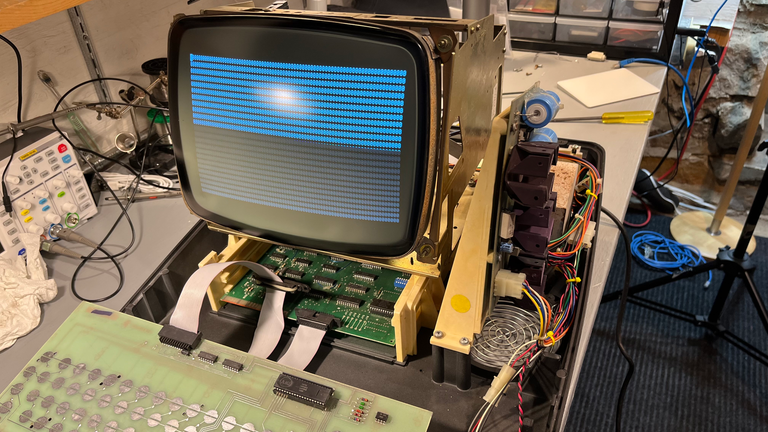

ADDS Regent 25 Initial start up — Initial start up

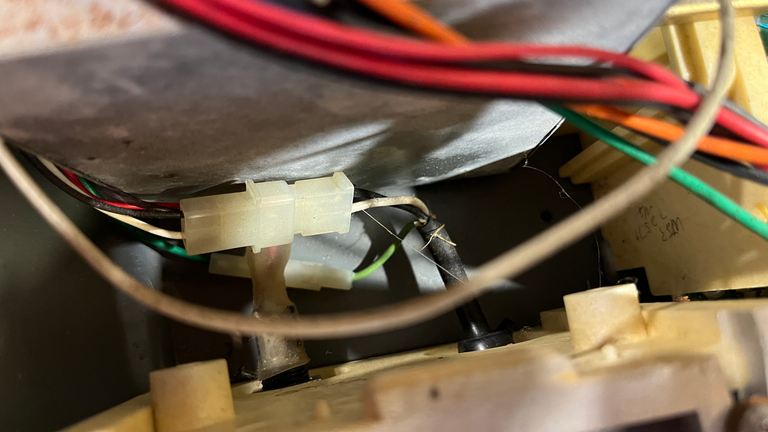

ADDS Regent 25 AC inlet US Hot (black) Neural (white) & earth (grean) — AC inlet US Hot (black) Neural (white) & earth (grean)

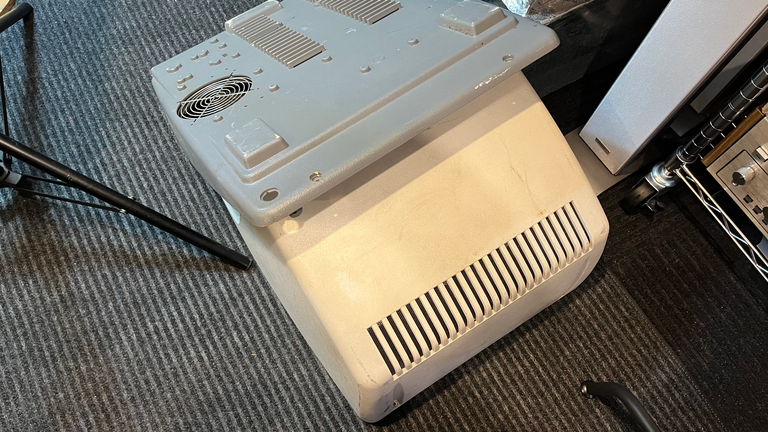

ADDS Regent 25 case components 1 — Case components

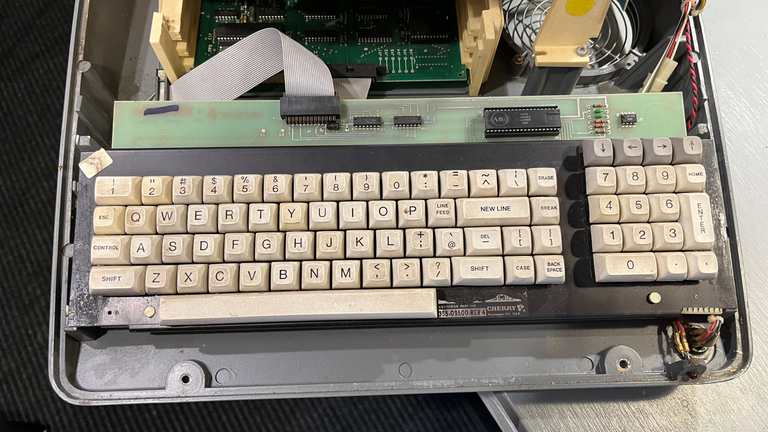

ADDS Regent 25 Cherry Capacitive Keyboard in situ — Cherry Capacitive Keyboard in situ

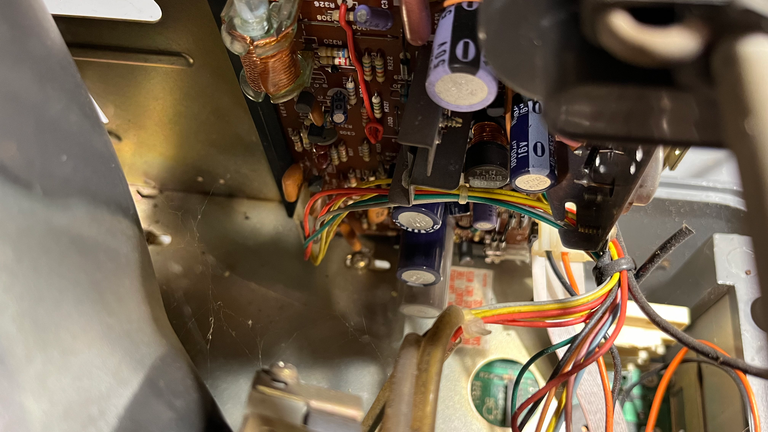

ADDS Regent 25 CRT board top view from right — CRT board top view from right

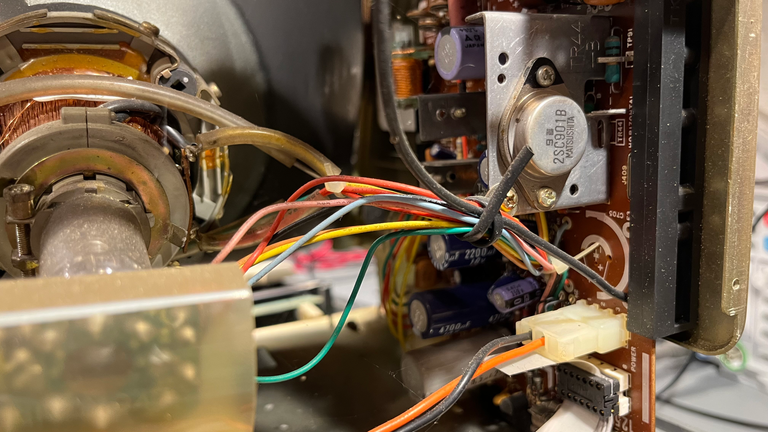

ADDS Regent 25 CRT board TR44 — CRT board TR44

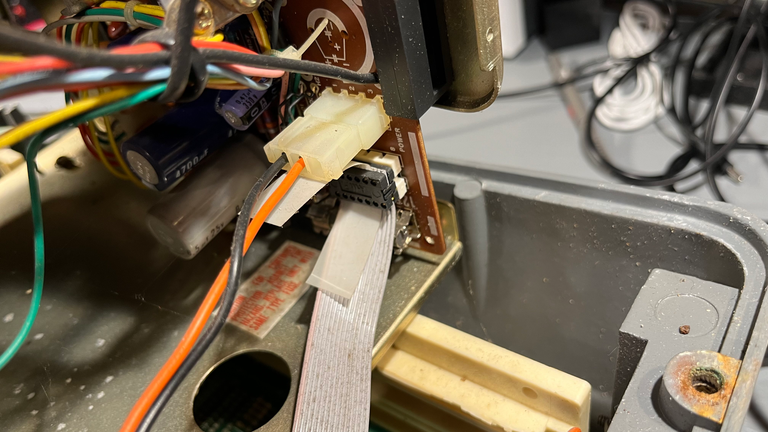

ADDS Regent 25 CRT board video & power — CRT board video & power

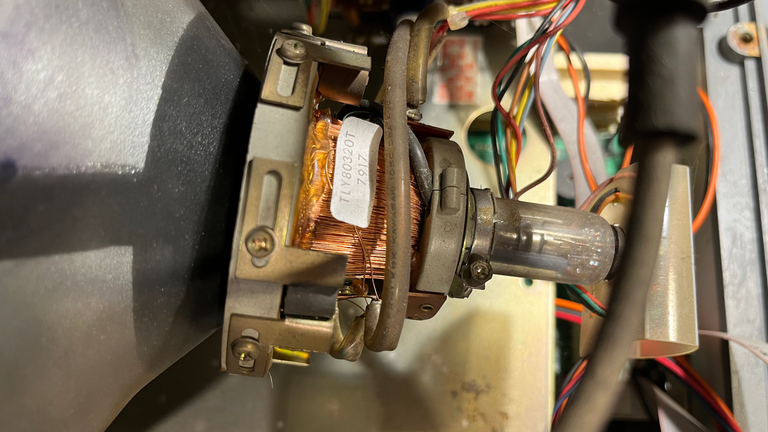

ADDS Regent 25 CRT coils — CRT coils

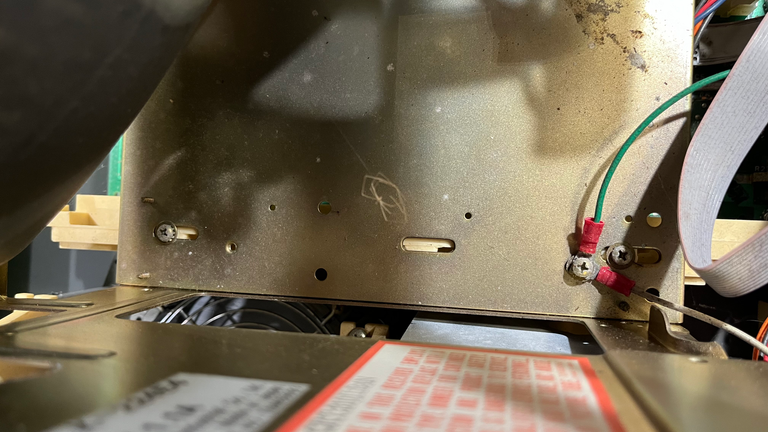

ADDS Regent 25 CRT frame earth point from top right — CRT frame earth point from top right

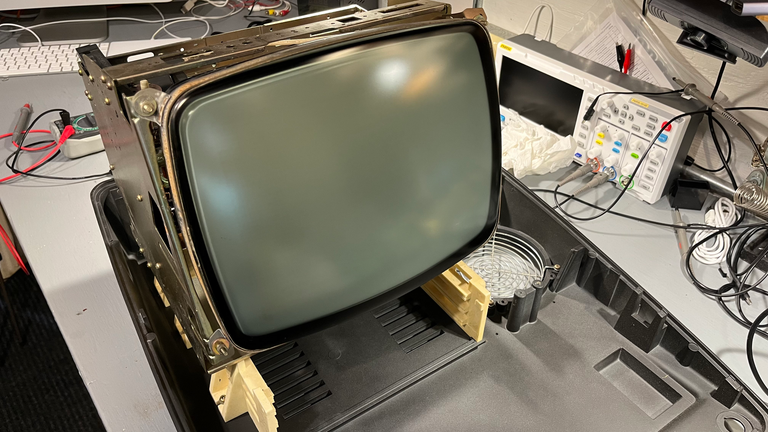

ADDS Regent 25 CRT front — CRT front

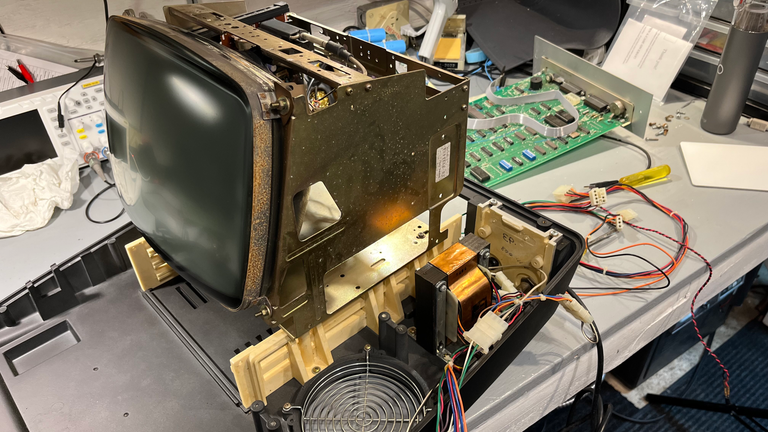

ADDS Regent 25 CRT right showing transformer exposed — CRT right showing transformer exposed

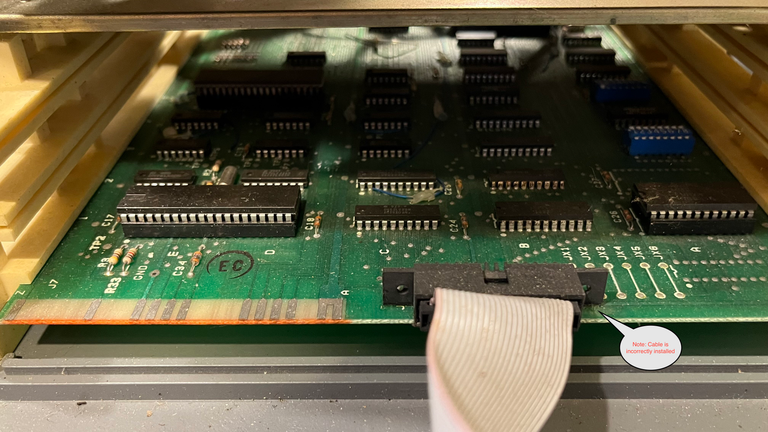

ADDS Regent 25 Front view of PCB — Front view of PCB

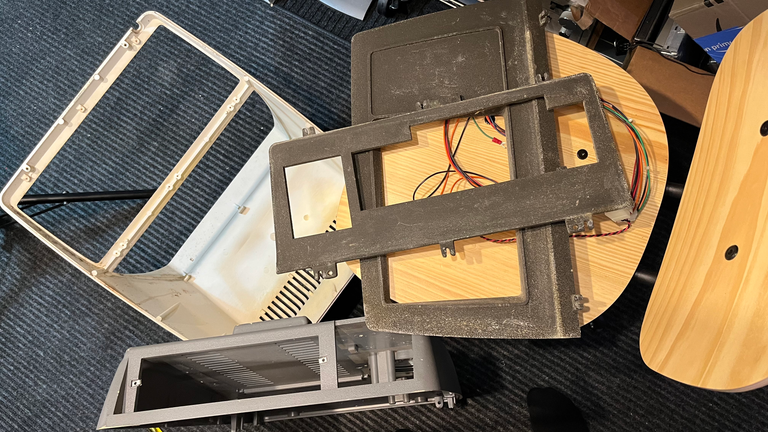

ADDS Regent 25 keyboard and front panel components removed — Keyboard and front panel components removed

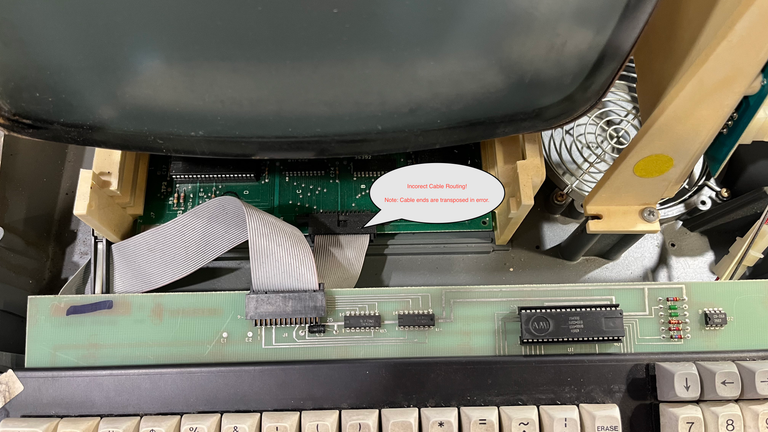

ADDS Regent 25 Keyboard Cable in Error — Keyboard Cable in Error

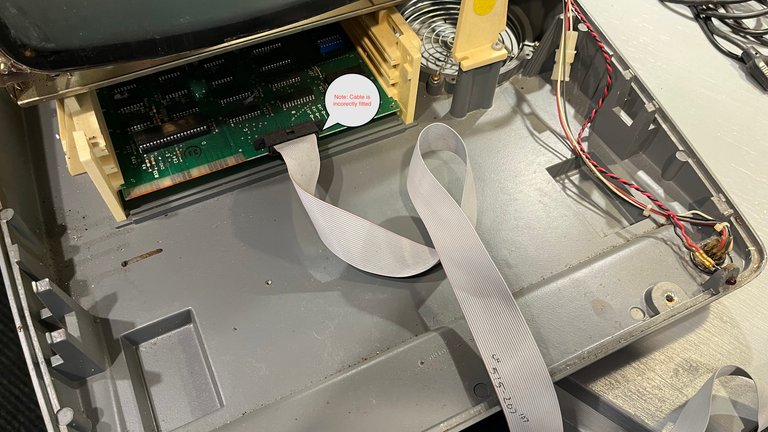

ADDS Regent 25 keyboard removed — Keyboard removed

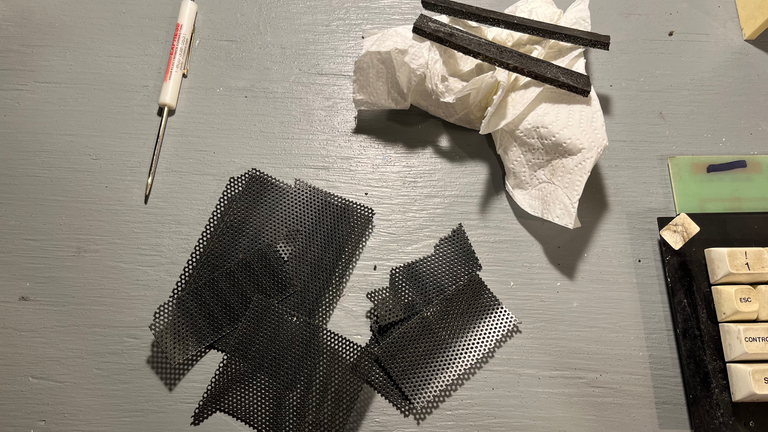

ADDS Regent 25 keyboard tape from possible previous repair and top vent grile - disintigrated — Keyboard tape from possible previous repair and top vent grile - disintigrated

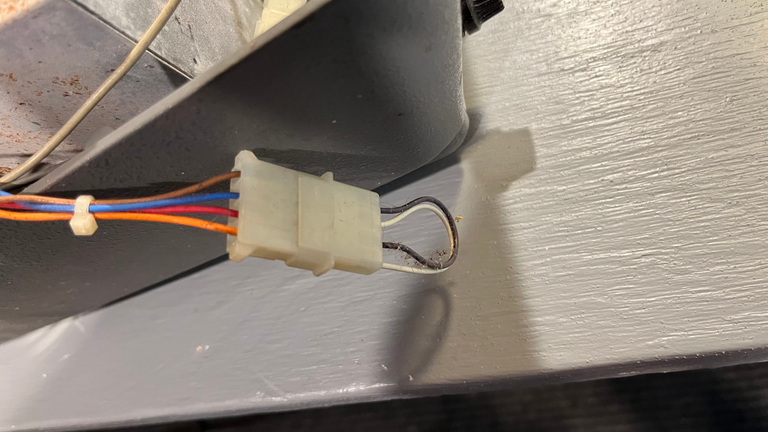

ADDS Regent 25 Mystery loopback — Mystery loopback

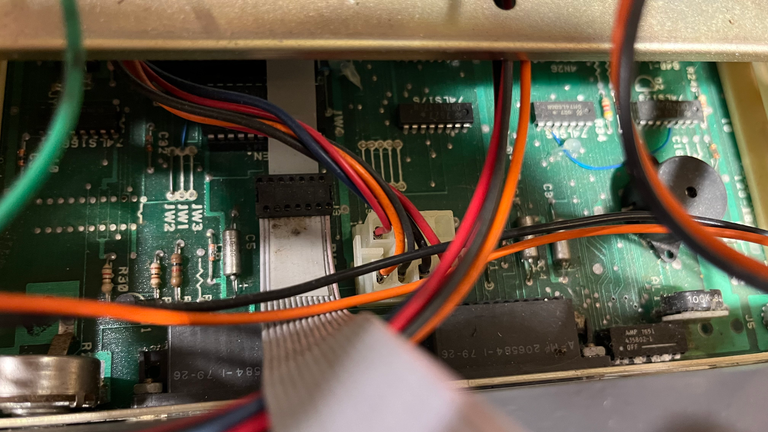

ADDS Regent 25 PCB power connection — PCB power connection

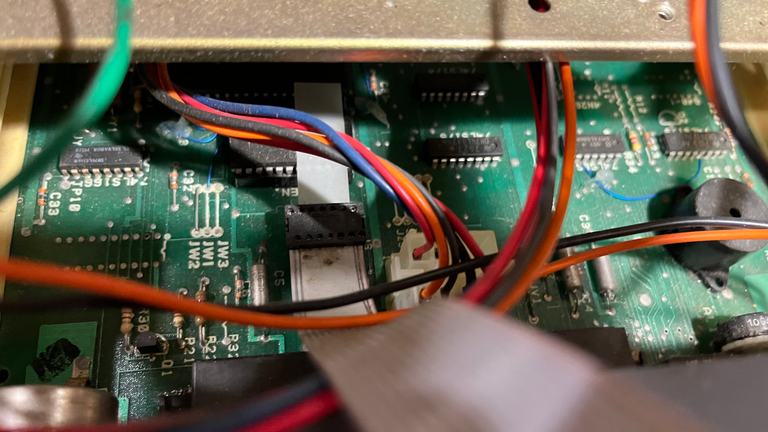

ADDS Regent 25 PCB rear video cable connection — PCB rear video cable connection

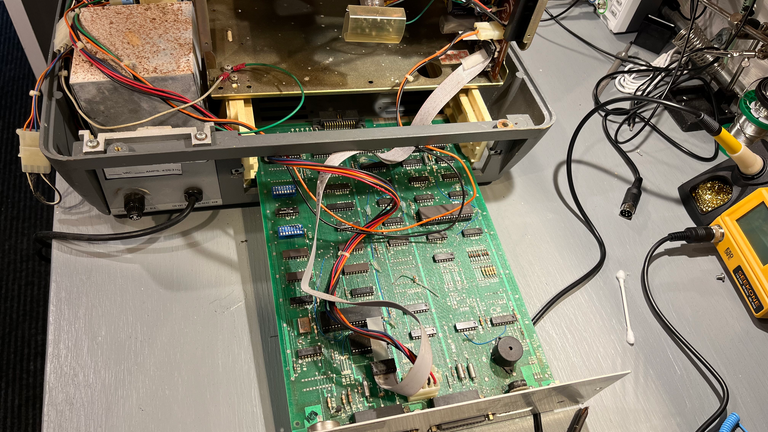

ADDS Regent 25 PCB slid out for service — PCB slid out for service

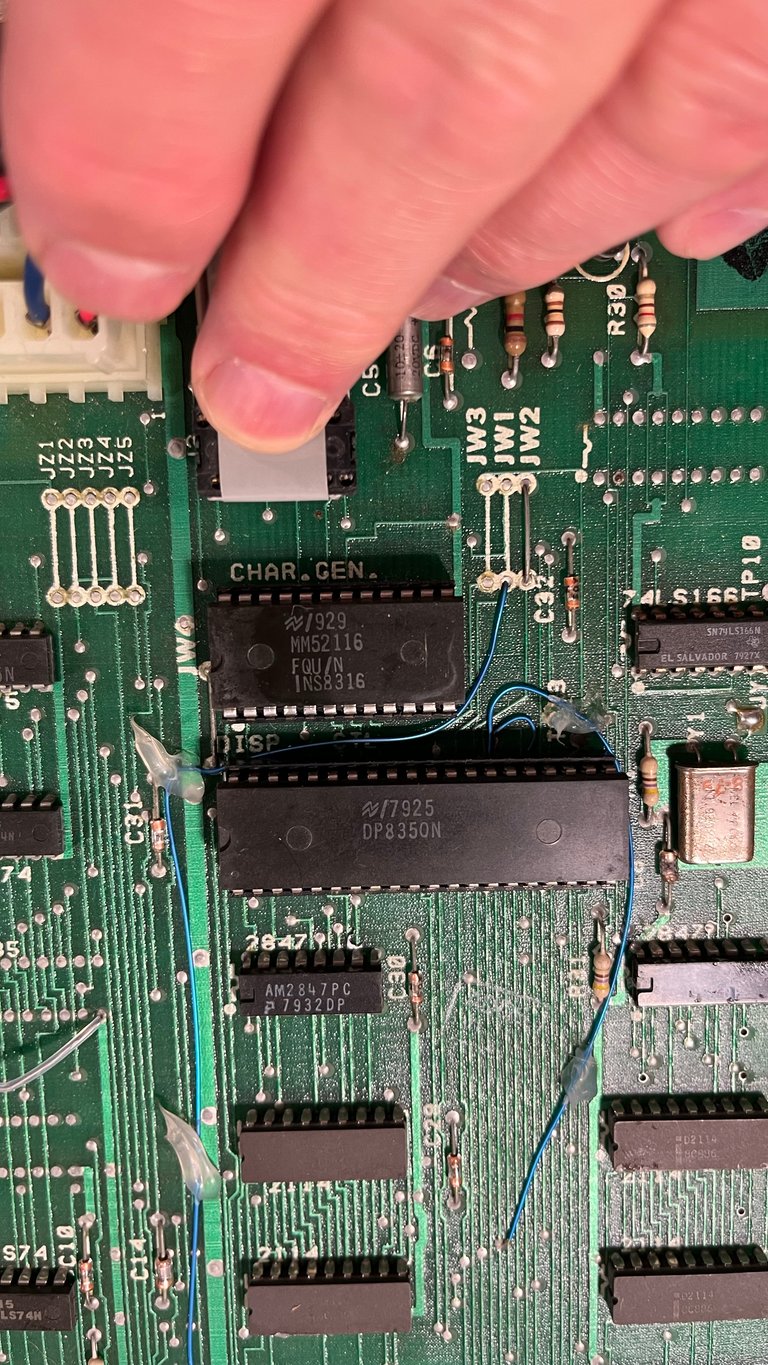

ADDS Regent 25 PCB top view focus on display and character ROM — PCB top view focus on display and character ROM

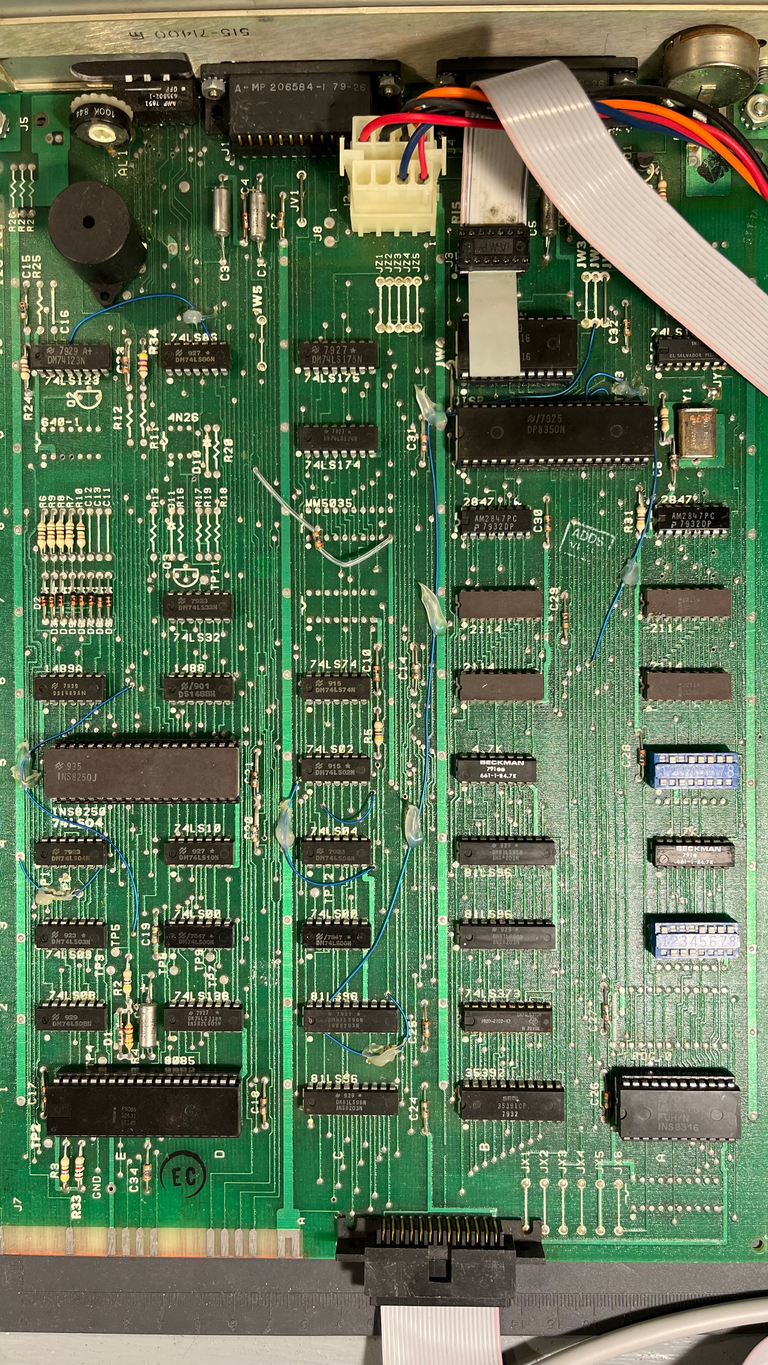

ADDS Regent 25 PCB top view — 25 PCB top view

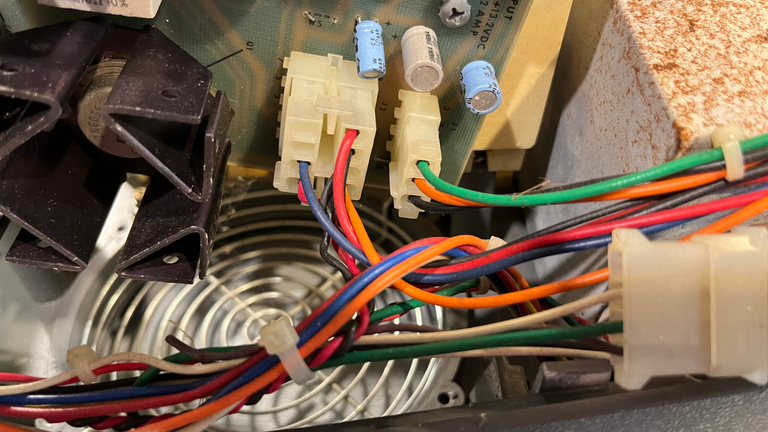

ADDS Regent 25 Power supply lower right — Power supply lower right

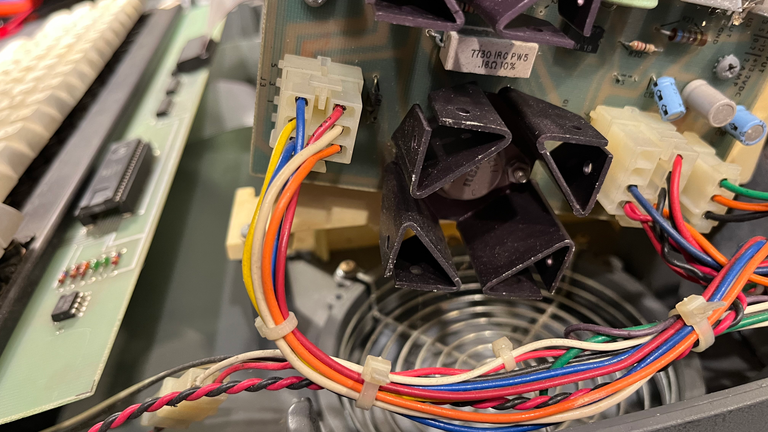

ADDS Regent 25 Power Supply — Power Supply

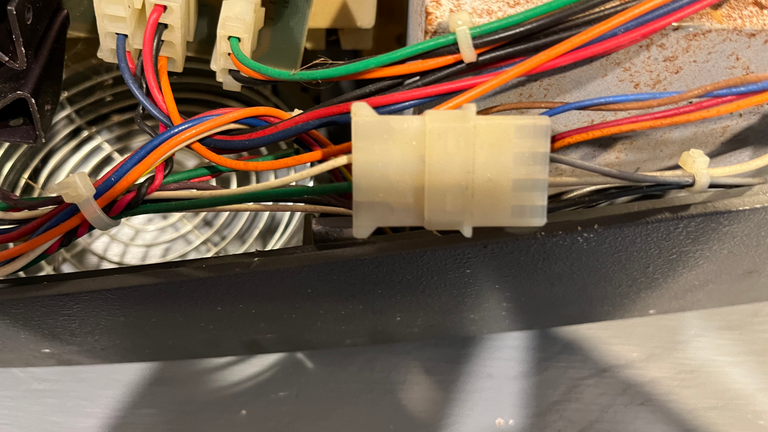

ADDS Regent 25 Power supply coupling — Power supply coupling

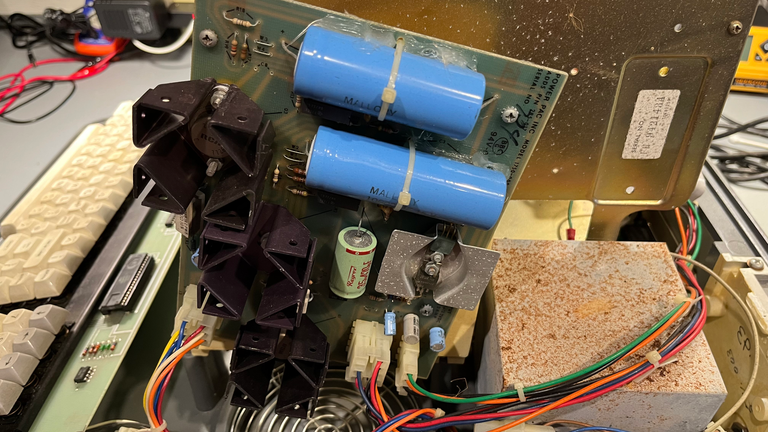

ADDS Regent 25 Power Supply — Power Supply

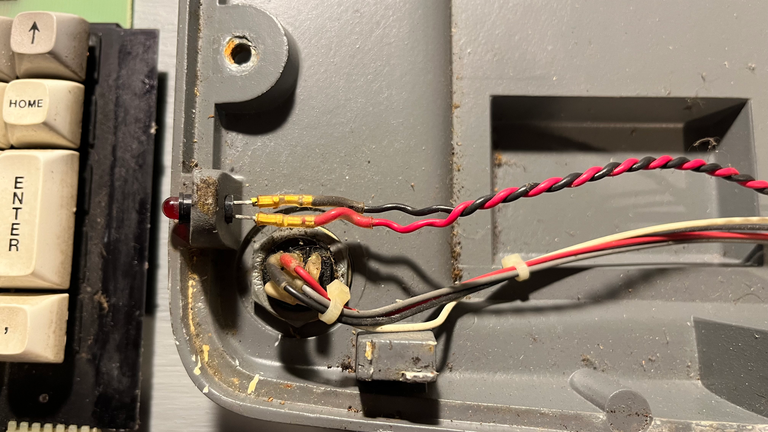

ADDS Regent 25 Power switch and LED connection from right — Power switch and LED connection from right

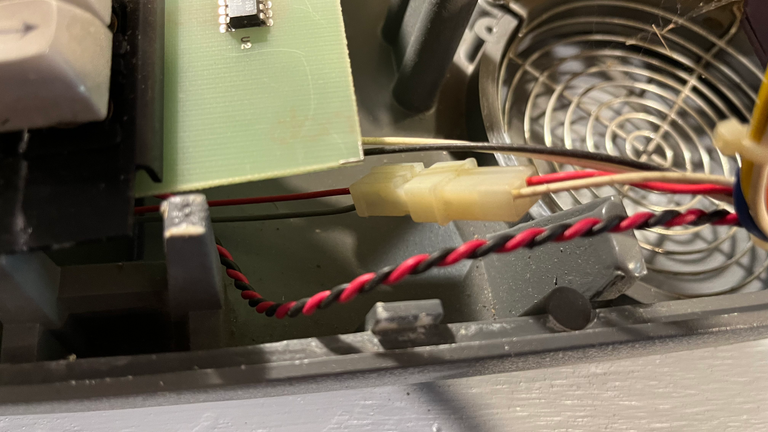

ADDS Regent 25 Power switch coupling — Power switch coupling

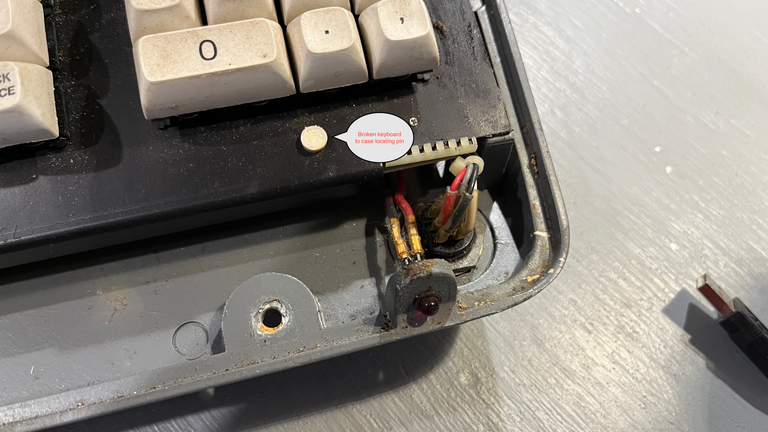

ADDS Regent 25 Power Switch, LED & keyboard locating pin — Power Switch, LED & keyboard locating pin

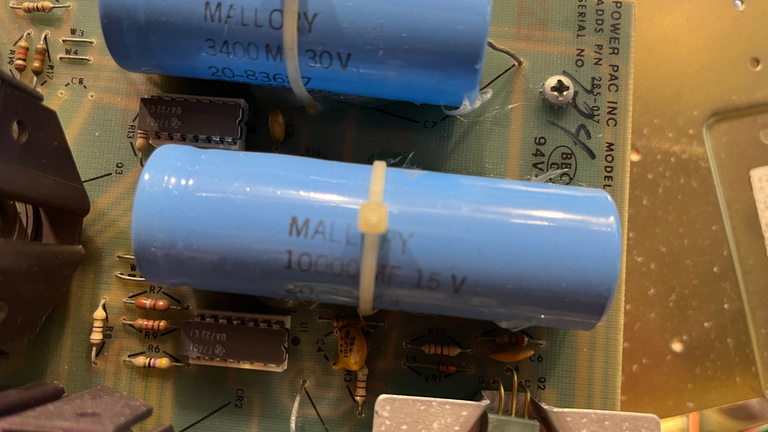

ADDS Regent 25 PSU cap 1 — PSU cap

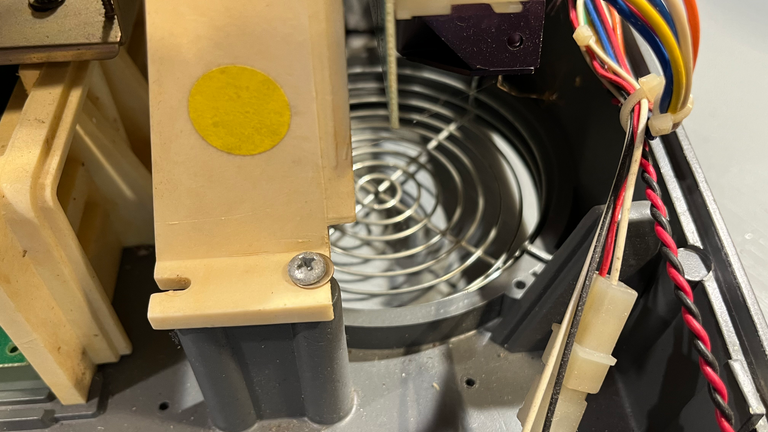

ADDS Regent 25 PSU frame mounting — PSU frame mounting

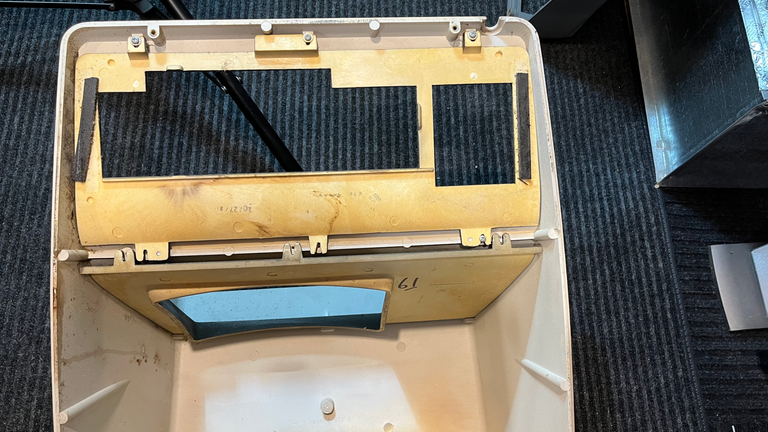

ADDS Regent 25 top case underside showing front and keyboard panel removal — Top case underside showing front and keyboard panel removal

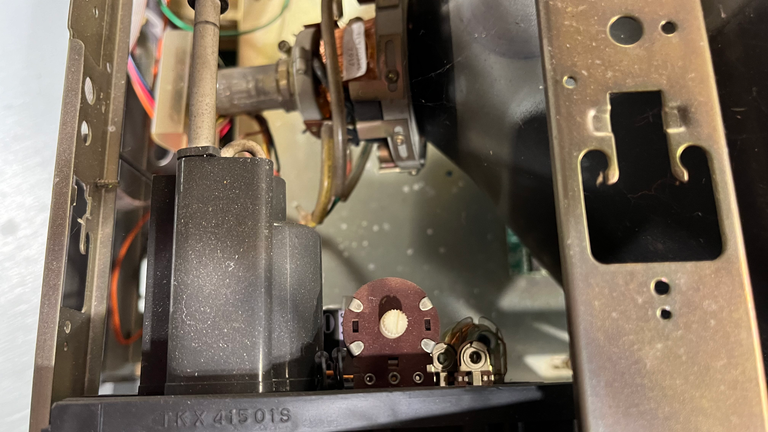

ADDS Regent 25 top view of CRT board — Top view of CRT board

Keyboard Rebuild

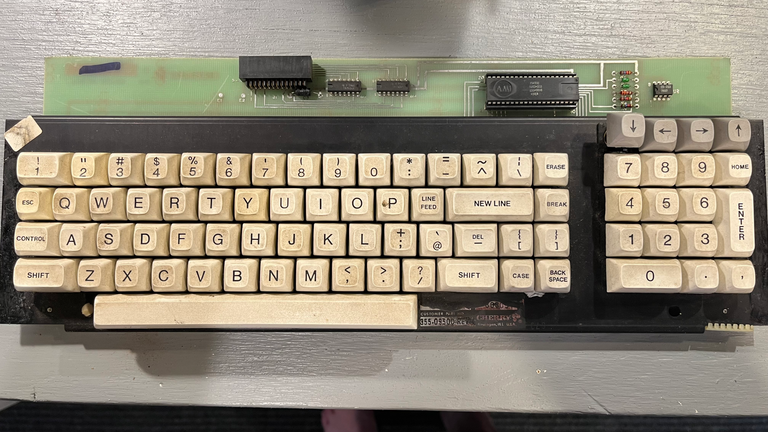

ADDS Regent 25 Cherry Capacitive Keyboard Top View — Cherry Capacitive Keyboard Top View

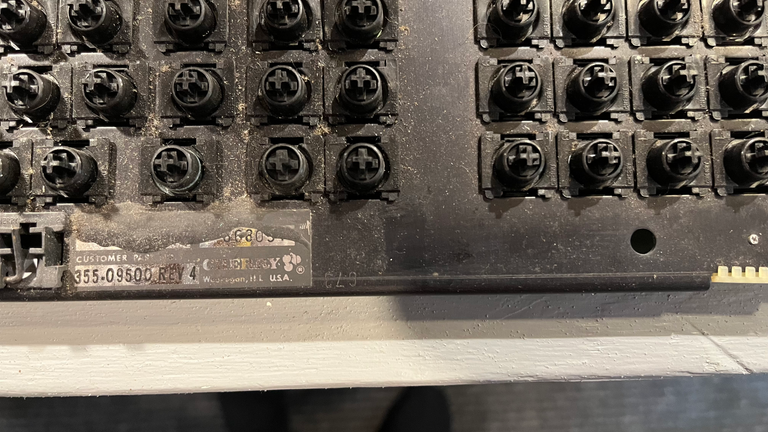

ADDS Regent 25 Cherry Capacitive Keyboard Close up of part number — Close up of part number

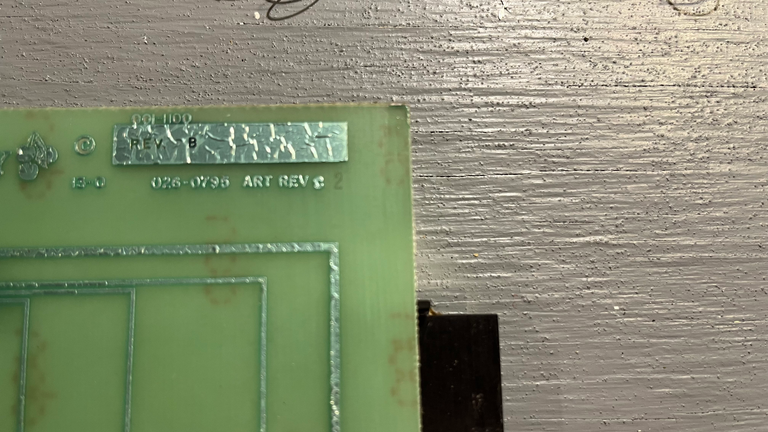

ADDS Regent 25 Cherry Capacitive Keyboard Close up of circuit board details — Close up of circuit board details

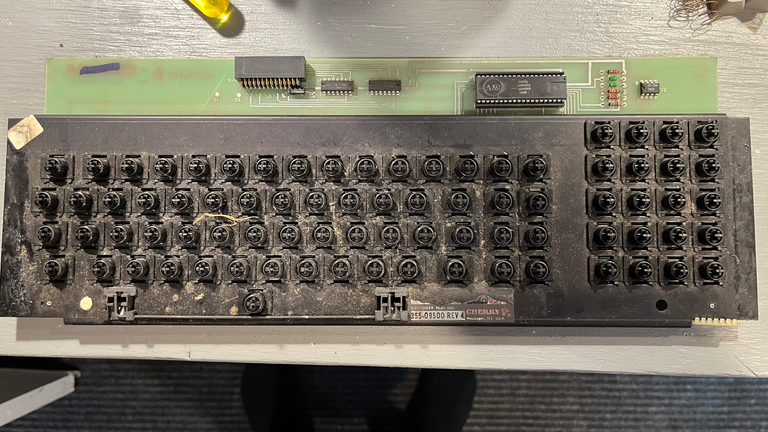

ADDS Regent 25 Cherry Capacitive Keyboard Top view of board, keycaps removed — Top view of board, keycaps removed

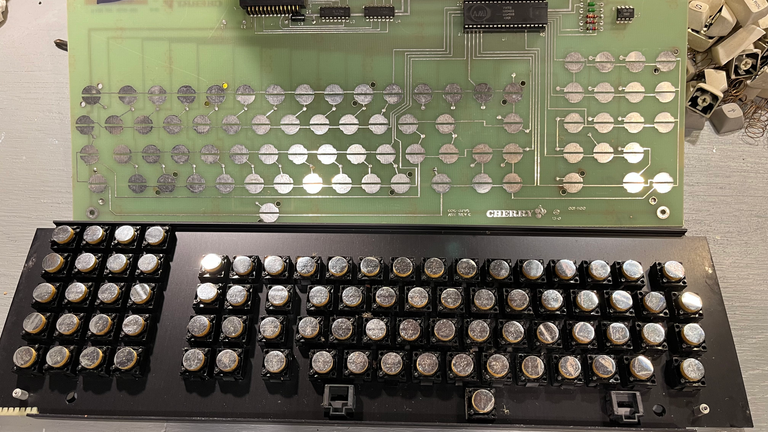

ADDS Regent 25 Cherry Capacitive Keyboard Circuit board removed — Circuit board removed

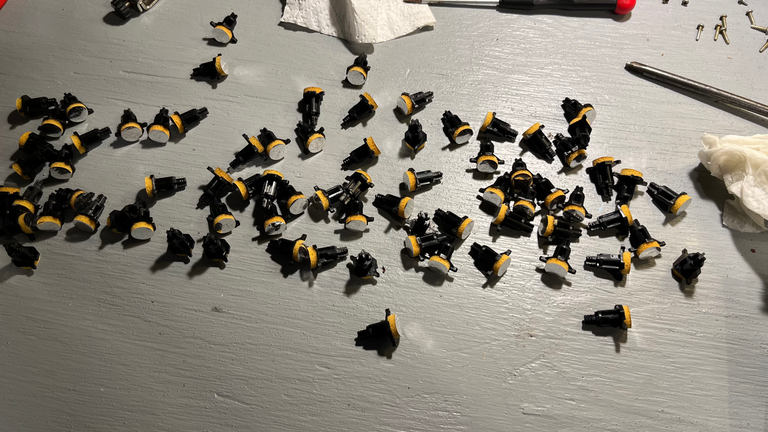

ADDS Regent 25 Cherry Capacitive Keyboard key plungers removed showing foam and foil capacitive pads — Key plungers removed showing foam and foil capacitive pads

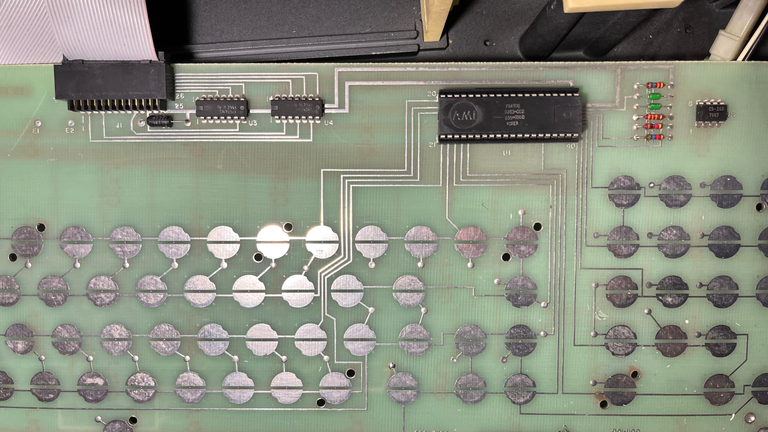

ADDS Regent 25 Cherry Capacitive Keyboard Close up of AMI 7949UU Keybaord Encoder — Close up of AMI 7949UU Keybaord Encoder

Cleaning and Painting

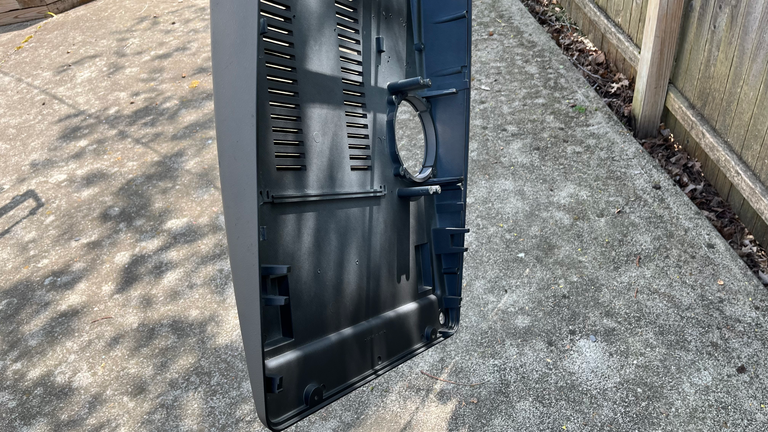

ADDS Regent 25 base painted

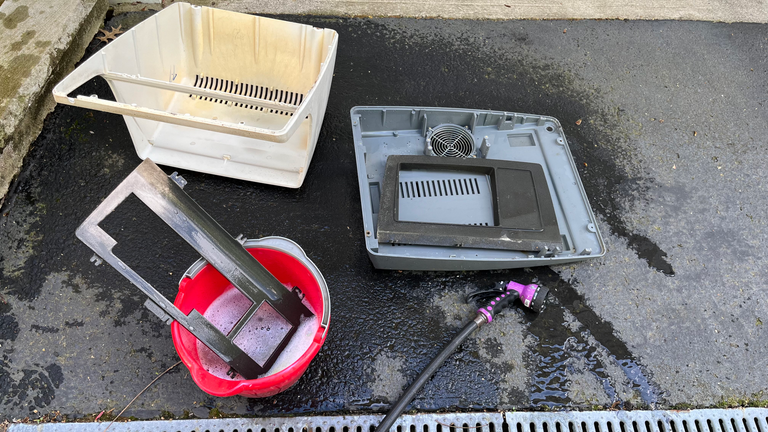

ADDS Regent 25 Case components cleaning

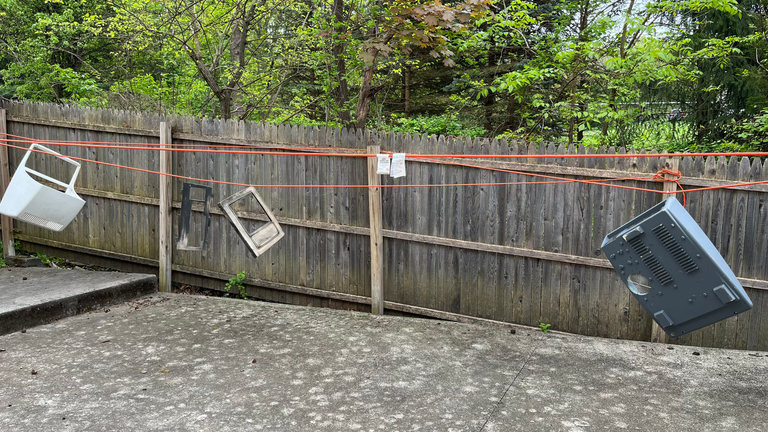

ADDS Regent 25 Case components ready for painting — Case components ready for painting

ADDS Regent 25 Flat black and Heirloom White paint — Flat black and Heirloom White paint

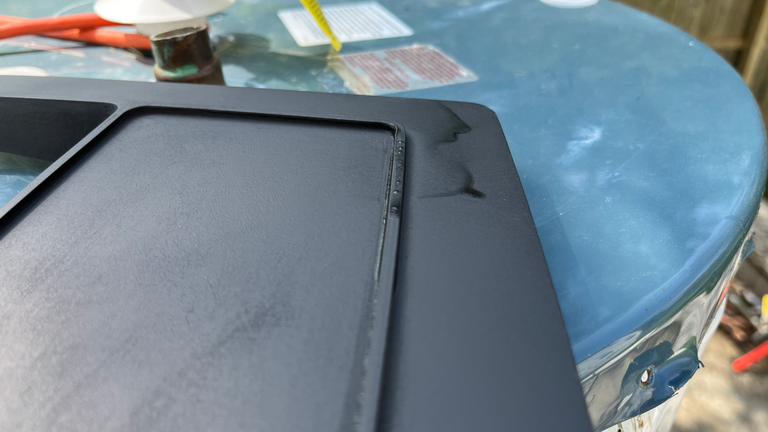

ADDS Regent 25 front panel paint run — Front panel paint run

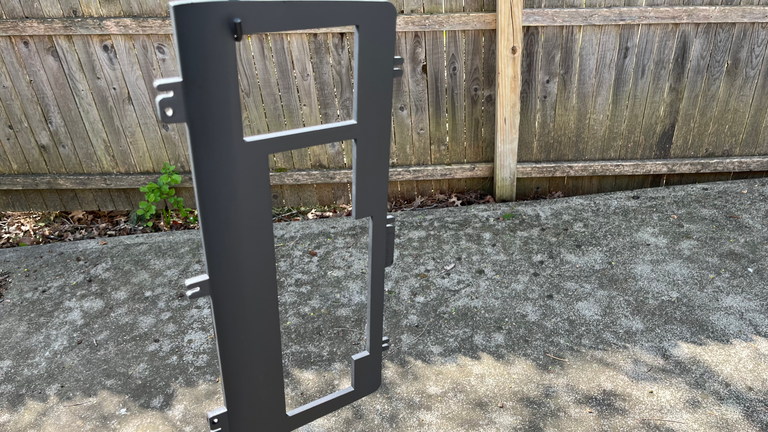

ADDS Regent 25 keyboard panel painted — Keyboard panel painted

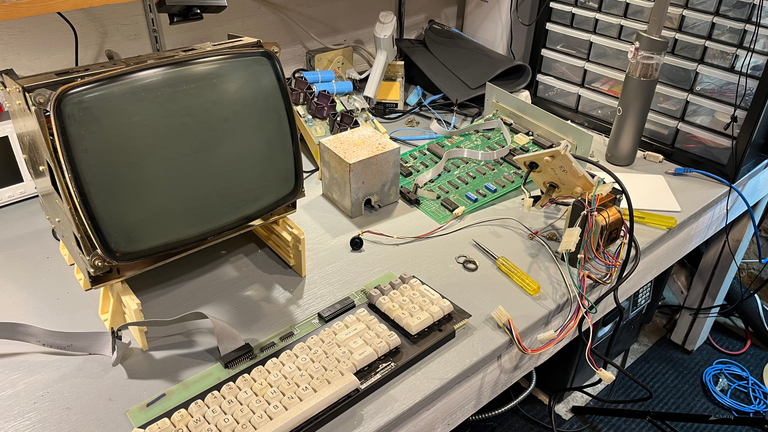

ADDS Regent 25 stripped on bench — Stripped on bench

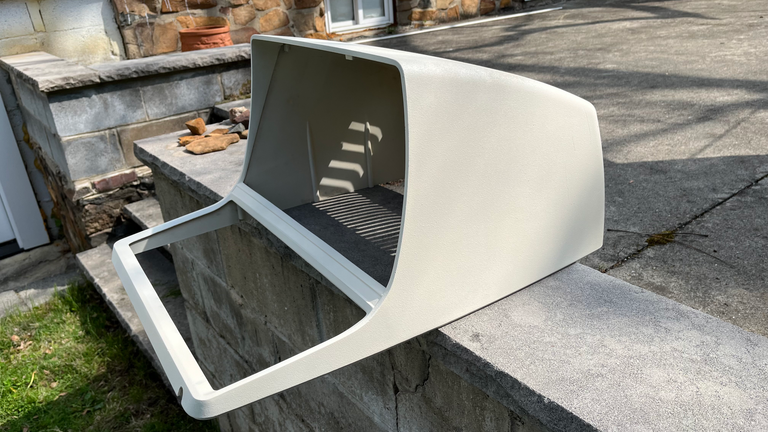

ADDS Regent 25 top case painted — Top case painted

Paint tin buckled

Complete

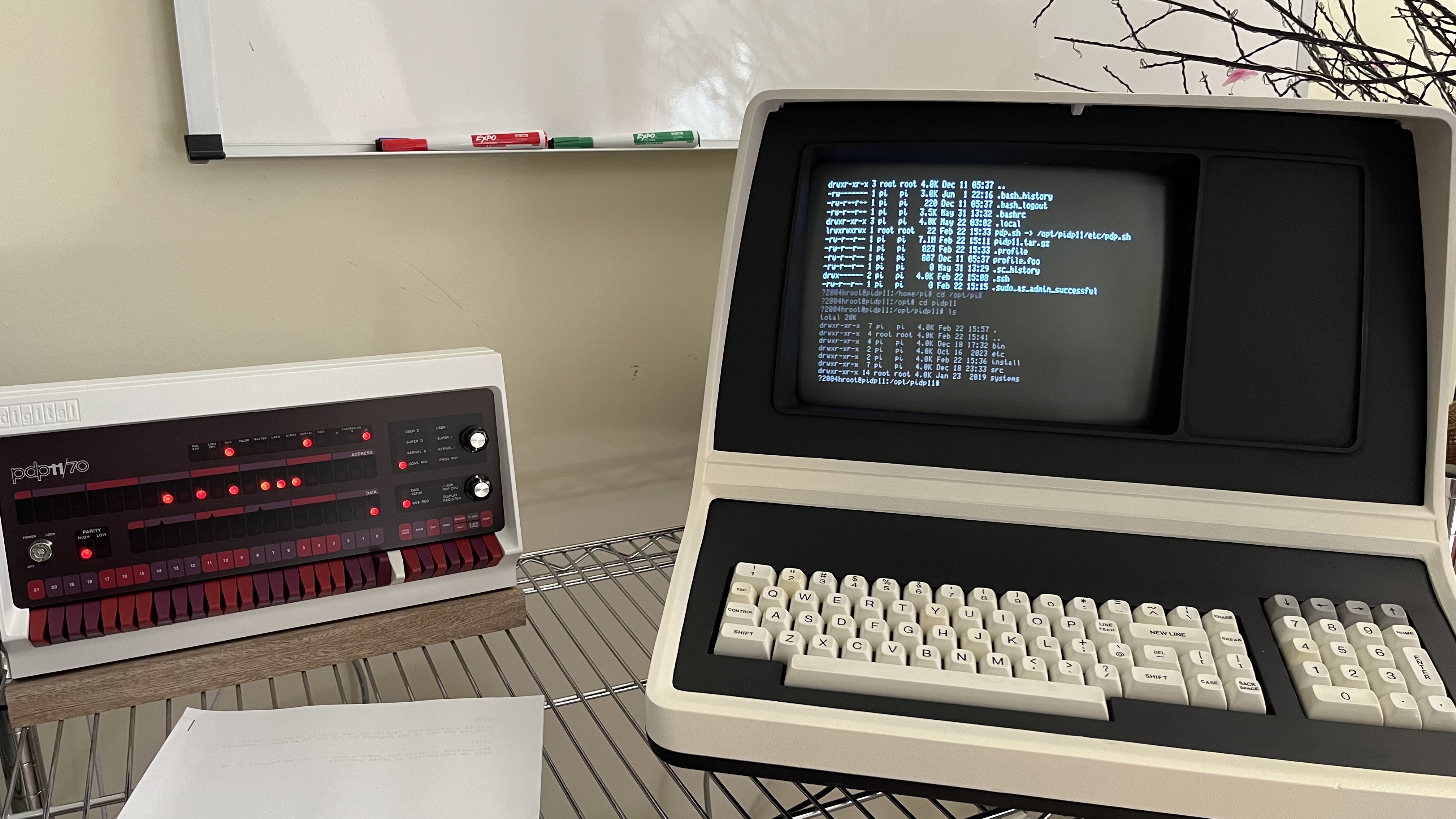

ADDS Regent 25 Refurbished
